Sorter V2 Documentation

⚠ Under heavy construction

As of July 11, 2026, Sorter V2 is not yet in a position to be built.

The documentation that exists is incomplete. Any given page may be accurate, inaccurate, present only as an example, or badly out of date. We do not yet recommend that anyone attempt to build Sorter.

For the most live updates on our progress, join our Discord ↗.

Electronics — WireViz

WireViz drawings

Reference

The harness drawings and the zip to send a cable vendor.

Not remotely validated. Nothing on this page has been checked against the physical machine. Values marked GUESS in the drawings are guesses. Sample quantities only, after a review pass.

↓ sorter-v2-harness-rfq.zip cover sheet + every drawing (PDF/PNG/SVG/HTML) + a BOM per drawing (TSV) + WireViz YAML sources

24V power distribution

WireViz drawing: 24V power distribution
PSU box pigtails PJ1-PJ3 and load cables W1-W3, one per 24V load: the board, the USB hub and the Orange Pi buck. Dashed arrows are barrel jack/plug mates. This is the overview; the two buildable sub-harnesses it is made of are below it. Click for full size.

Download: PDF · PNG · SVG · HTML (drawing + BOM) · BOM (TSV) · YAML source

Loading the bill of materials for 24V power distribution

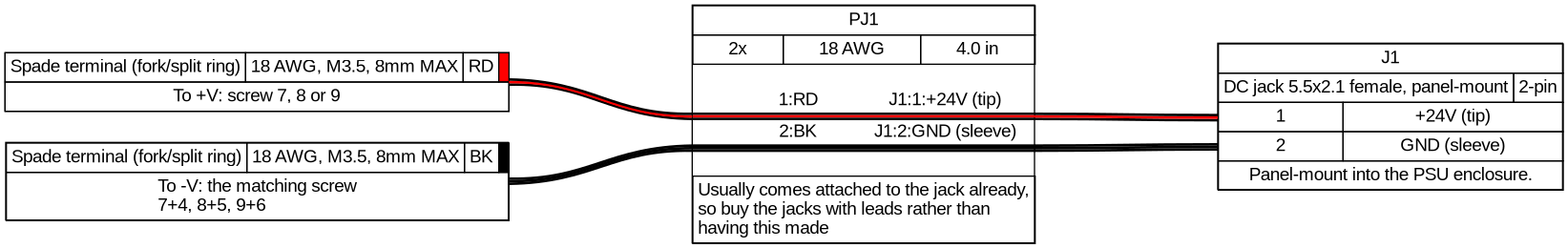

PSU output pigtail

WireViz drawing: PSU output pigtail
One output pigtail, x3 per PSU build. Spade terminals onto a +V/-V screw pair on the PSU terminal block (7 with 4, 8 with 5, 9 with 6), panel-mount jack on the other end. Click for full size.

Download: PDF · PNG · SVG · HTML (drawing + BOM) · BOM (TSV) · YAML source

Loading the bill of materials for PSU output pigtail

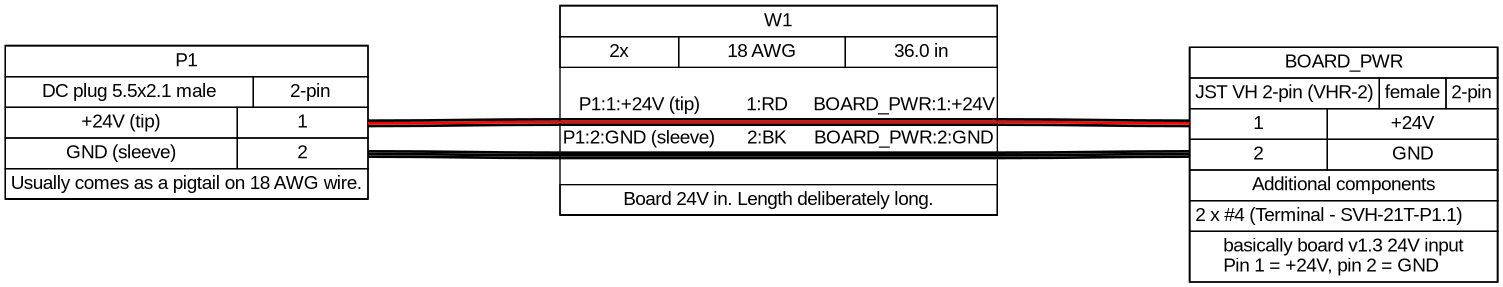

24V to basically board v1.3

WireViz drawing: 24V to basically board v1.3
The board's own feed, W1 on the overview: barrel plug to JST VHR-2. Click for full size.

Download: PDF · PNG · SVG · HTML (drawing + BOM) · BOM (TSV) · YAML source

Loading the bill of materials for 24V to basically board v1.3

Stepper cables

WireViz drawing: Stepper cables
The S1-S4 cable, board PHR-4 to the motor's own PHR-6 with positions 2 and 5 empty, and the straight-through chute cable to bare labeled leads. Click for full size.

Download: PDF · PNG · SVG · HTML (drawing + BOM) · BOM (TSV) · YAML source

Loading the bill of materials for Stepper cables

LED drops and limit switch

WireViz drawing: LED drops and limit switch
LED feeds L1-L3 to their unplug-point jacks, pigtails L1p-L3p to the COB boards and strip, and the limit switch cable (keyed 1x3 dupont at the board, push-on blade terminals at the switch). Click for full size.

Download: PDF · PNG · SVG · HTML (drawing + BOM) · BOM (TSV) · YAML source

Loading the bill of materials for LED drops and limit switch
